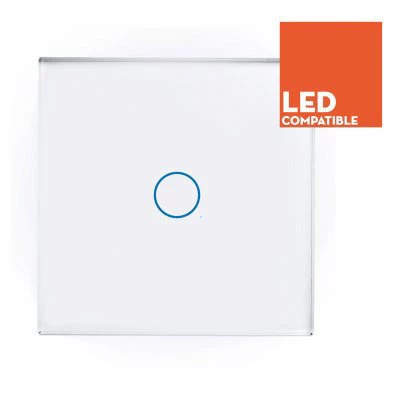

RetroTouch Crystal White Glass Touch Dimmer

Our Retrotouch Crystal Touch & Remote LED Dimmer Light Switch are designed to dim LEDs* without flicker; you can finally dim LEDs* with smooth gradual dimming and last memory brightness.

Retrotouch dimmer switch collection ranges from conventional dimmers, suitable for dimming LED bulbs, to state-of-the-art remote controlled dimmer switches.

That said, by switching to LED lighting and using LED dimmer switches, you can save on energy costs by up to 85%!

Retrotouch offers a wide range of top-of-the-line dimmer switches; from conventional rotary styles to smooth glass touch switches. Glass dimmer switches add class and a bit of edge to your lighting system, and are available with striking chrome trim or as full glass panels.

FEATURES:

• Touch or Remote LED Dimmer
• Remote control can be used through walls (RF) - with Remote Control option

• Singular Touch region dim up & down
• Blue glow when off easy to find at night
• Red Halo when on
• Plain Glass Panel
• Easy wipe clean
• Leading Edge Dimmer switch
• Works with LEDs*, Halogens and standard bulbs.
• Can be used with optional remote control

 PARAMETERS:

• Rated Voltage: 220~240V AC
• Frequency: 50 ±0.5
• Capability allowance: -15%~+10% 187~264V
• Operating Power: 1 Gang 3 - 50W for LEDs & 3 - 1000W for Halogen, Incandescent lamps. For 2 Gang Dimmers, Per Dimmer 3 - 50W for LEDs & 3 - 500W for Halogen, Incandescent lamps
• Working Environment: Working Temperature: 0^oC~40^oC
• Relative Humidity: 10% - 93%
• Energy Consumption: <0.5W
• RF Frequency: 433Mhz
• Measurement: 86 x86 x 30mm

IN THE BOX:

• Crystal PG Touch Dimmer Light Switch 1 Gang White
• 2 Screws
• Mini Remote Control - with Remote Control option (may come in a separate box)
• Instruction booklet

IMPORTANT

• All switches are CE and RoHS certified to European Standard
• All Retrotouch products must be installed by a qualified electrician
• *LEDs – our dimmer switches are constantly being tested by major LED brands, however we cannot guarantee 100% that our Retrotouch switches are compatible with every LED brand on the market


Touch dimmers can control LED, mains voltage halogen lamps and incadescent lights unless otherwise stated. All dimmers are rated by wattage and touch dimmers are no exception. The rating for LED lights will be less than halogen or incandescent and importantly the dimmers also have a minimum load requirement, for example 5W for a LED touch dimmer.

These wattages must always be adhered to and in the case of halogen lamps and capsules must be over-rated by at least 30%. GU10, G9 and GZ10 halogen lamps and capsules tend to arc in the latter part of their life. This is not dangerous in any way and is a characteristic of halogen lamps. This arcing creates an additional load on the dimmer and can overload the module resulting in excess heat and premature failure. The first indication of this happening is an increase in noise, often heard as a buzz from the dimmer switch.

All quality branded halogen capsules incorporate a fused link to protect the circuit in case of a short within the lamp due to this deterioation. Non-branded cheap generic halogen lamps do not have this function and should be avoided.

When using for LED dimmers please make sure the LED lights you are using are able to be dimmed. Many LEDs cannot so double check. There is more information on this if you look at LED dimmers.

Never mix lighting types through the same dimmer on the same circuit. For example if you have 3 halogen bulbs and 3 LED bulbs fitted in the same room on the same switch you cannot replace that switch with a dimmer unless you remove either the halogen lamps or the LEDs. If you were to fit a dimmer in these circumstances then damage to the dimmer, lamps or both will occur.

Never use a dimmer module that is not rated higher than the total load applied to it. Also they are only available for one way operation if used in conjunction with a light switch.

We recommend a minimum of 25mm deep wall boxes (unless otherwise stated) for mounting our standard style touch dimmer switches and 35mm deep wall boxes for shallow or flat plate ranges.
